Carbonized Packing with PTFE from China manufacturer - Yichang Huabang Graphite Co.,Ltd

Price:	1.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Hubei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: HBP301

Production Capacity: 8tons/month

Delivery Date: 7 days

Style: Mechanical Seal

Brand Name: Huabang

Working temperature: 250℃

PH: 2-12

Means of Transport: Ocean,Land,Air

Packing: carton box or wooden box

Standard or Nonstandard: Nonstandard

Material: Others

Pressure: 30Mpa

Velocity: 2-16m/s

Pressure :30Mpa
Working temperature :250℃
Velocity: 2-16m/s

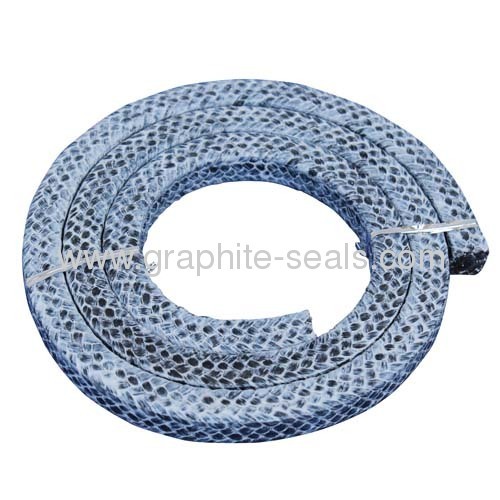

product name : Carbonized Packing with PTFE

Carbonized packing with PTFE is a braided packing made of carbonized poly acrylonitrile fiber and finished with PTFE dispersion and lubricant,then braided into square cross section. It has following advantages: good heat conductivity, abrasion resistant and stable chemical abilities, therefore it is the ideal replacement for asbestos.

Equipment	Centrifugal pump, mixer, agitator, stern tube. etc
Sector of the industry	Chemical industry-for aggressive medium pumping, power industry-for sealing of high-temperature pumps feeding the boilers,petrochemical industry – resistance to oils and hydrocarbons
Medium	Water, brine, factory waste, salt solutions, weak acid, mineral oil,etc
Dimension	3×3mm--50×50mm;Others can be produced according to client's requirement.

Technical data:(due to the practical application of different working conditions, the following parameters is for reference only)
